ADR4540ARZ
ADR4540ARZ
feilidi-ADR4540ARZ

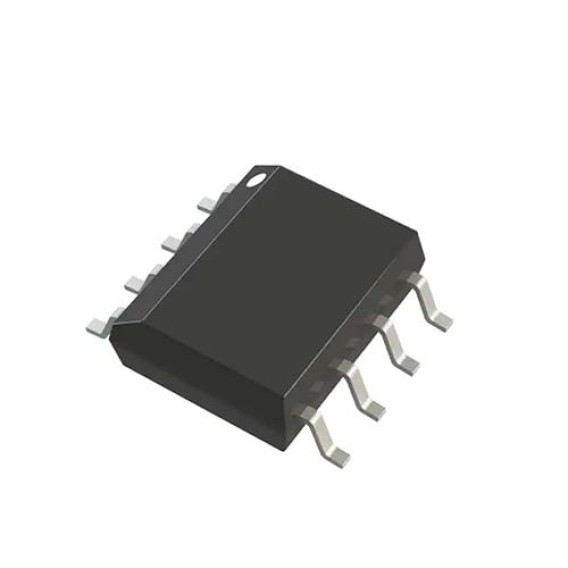

8-SOIC (0.154, 3.90mm Width)
ANALOG DEVICES ADR4540ARZ Voltage Reference, Ultralow Noise, High Accuracy, Series - Fixed, ADR4540 Series, 4.096V, NSOIC-8
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
describe
The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 devices are high precision, low power, low noise voltage references with ±0.02% maximum initial error, excellent temperature stability, and low output noise.
This family of voltage references uses an innovative core topology to achieve high accuracy while delivering industry-leading temperature stability and noise performance. The device's low thermally induced output voltage hysteresis and low long-term output voltage drift also improve lifetime and system accuracy over temperature.
A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV make this device ideal for portable equipment.
The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 family of voltage references is available in an 8-lead SOIC package and offers a wide output voltage range, and the devices are specified over the −40°C to +125°C extended industrial temperature range. temperature range. The ADR4525W is available in an 8-lead SOIC package that is qualified for automotive applications.
characteristic
°C (C Grade 0°C to 70°C)
• 2 ppm/°C (B A grade −40°C to +125°C)
• 4 ppm/°C (A grade −40°C to +125°C)
• Output noise (0.1 Hz to 10 Hz):
• 1 μV pp (VOUT is 2.048 V (typ)
• Initial output voltage error: • B, C, D grades: ±0.02% (max)
• Input voltage range: 3 V to 15 V
• Operating temperature: • A and B grades: −40 °C to +125°C
• C Grade: 0°C to +70°C
• Output Current: +10 mA Source/-10 mA Sink
• Low Quiescent Current: 950 µA (Max)
• Low Dropout: 300 mA mV (2 mA, VOUT ≥ 3 V)
• 8-lead SOIC and LCC packages
• AEC-Q100 automotive qualified
• Long-term drift: 8 ppm (typ)/4500 hours
application
• High resolution data converters
• High precision measurement devices
• Industrial instrumentation
• Medical equipment
• Automotive battery monitoring
