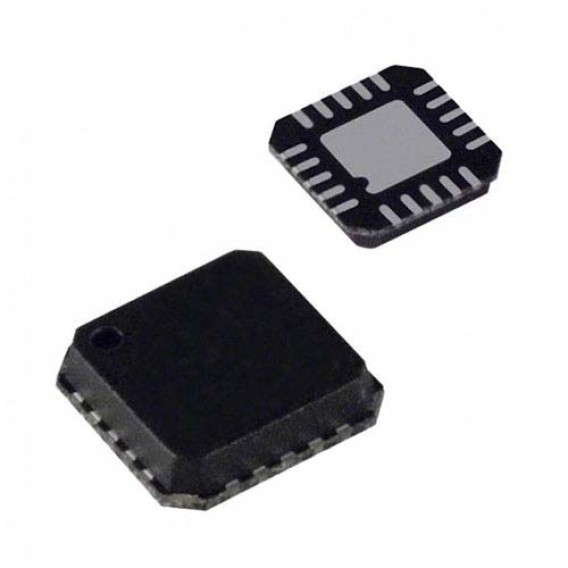

Product Description: ADG3245BCPZ
The ADG3245BCPZ is a Quad SPST (Single-Pole, Single-Throw) analog switch IC, designed to facilitate high-speed signal switching in various electronic circuits. It is well-suited for applications that require signal routing, signal multiplexing, and analog or digital signal switching.
Features:
Quad SPST Switches: The ADG3245BCPZ integrates four independent single-pole, single-throw (SPST) switches in a single package, allowing the user to control and switch four different signals simultaneously.
Low On-Resistance: This IC exhibits low on-resistance, resulting in minimal insertion loss and distortion when the switches are activated. It ensures that the signal path has low resistance, reducing signal attenuation and providing a high-quality output.
High Bandwidth: The ADG3245BCPZ supports a wide bandwidth, making it suitable for high-frequency applications, including audio, video, data transmission, and telecommunications.
Low Power Consumption: With low power consumption, this switch IC helps conserve energy and extends the battery life in portable and battery-operated devices.
Rail-to-Rail Operation: It offers rail-to-rail signal handling, allowing the signals to swing between the power supply rails, ensuring maximum dynamic range and signal integrity.
Fast Switching Speed: The ADG3245BCPZ has fast switching speeds, minimizing signal distortion during switching transitions and enabling smooth signal transmission.
Applications:
The ADG3245BCPZ analog switch finds application in a wide range of electronic circuits and systems, including:
Audio and Video Signal Switching: It is commonly used in audio and video equipment to switch between different audio or video sources, such as DVD players, audio mixers, and multimedia systems.
Communication Systems: The ADG3245BCPZ is employed in communication systems, such as routers, switches, and base stations, for signal routing and switching functions.
Instrumentation and Test Equipment: It is used in test and measurement instruments, providing signal multiplexing and channel selection capabilities.
Data Acquisition Systems: The IC is utilized in data acquisition systems to switch between multiple analog or digital input signals, enabling data logging and analysis.
Battery Management Systems: It finds application in battery management systems, offering voltage and current monitoring through signal routing.
Industrial Automation: The ADG3245BCPZ is integrated into industrial automation equipment for signal routing and control purposes.
In summary, the ADG3245BCPZ is a versatile Quad SPST analog switch IC with low on-resistance, high bandwidth, low power consumption, rail-to-rail operation, and fast switching speed. It is used in various applications, including audio and video signal switching, communication systems, instrumentation, data acquisition, battery management, and industrial automation. The ADG3245BCPZ provides efficient and reliable signal routing and switching capabilities, contributing to enhanced performance and functionality in electronic systems and equipment.
