  • AD5560JSVUZ

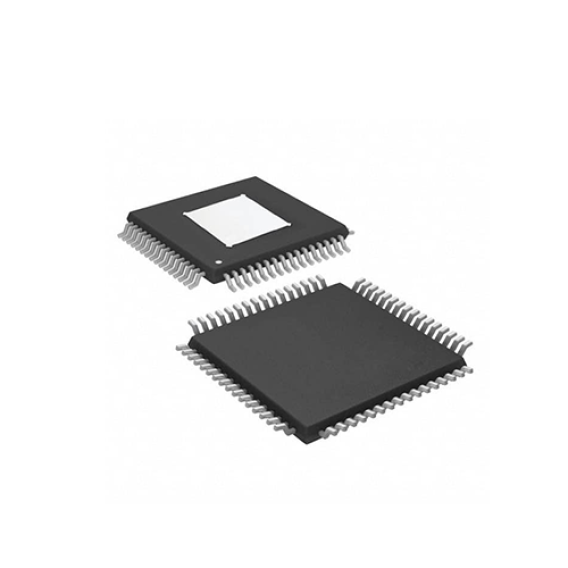

AD5560JSVUZ

advertisement

Manufacturer No:

AD5560JSVUZ

Manufacturer:

Analog Devices Inc.

HK JDW NO:

FEILIDI-AD5560JSVUZ

Package:

64-TQFP-EP

Datasheet:

AD5560JSVUZ

Description:

Quantity:

In Stock : 1999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

GENERAL DESCRIPTION

The AD5560 is a high performance, highly integrated device power

supply consisting of programmable force voltages and measure

ranges. This part includes the required DAC levels to set the programmable inputs for the drive amplifier, as well as clamping and

comparator circuitry. Offset and gain correction is included on-chip

for DAC functions. A number of programmable measure current

ranges are available: five internal fixed ranges and two external

customer-selectable ranges (EXTFORCE1 and EXTFORCE2) that

can supply currents up to ±1.2 A and ±500 mA, respectively.

The voltage range possible at this high current level is limited by

headroom and the maximum power dissipation. Current ranges in

excess of ±1.2 A or at high current and high voltage combinations

can be achieved by paralleling or ganging multiple DPS devices.

Open-drain alarm outputs are provided in the event of overcurrent,

overtemperature, or Kelvin alarm on either the SENSE or DUTGND

line.

The DPS functions are controlled via a simple 3-wire serial interface

compatible with SPI, QSPI™, MICROWIRE™, and DSP interface

standards running at clock speeds of up to 50 MHz.


APPLICATIONS

► Automatic test equipment (ATE)

► Device power supply
