Home Home Relays HF & RF Relays 9852-05-10
9852-05-10
  • 9852-05-10
Free Sample More

9852-05-10

advertisement

Manufacturer No:

9852-05-10

Manufacturer:

Coto Technology

HK JDW NO:

181-9852-05-10

Package:

SMD/SMT

Datasheet:

9852-05-10

Description:

COTO TECHNOLOGY 9852-05-10 Reed Relay, SPDT, 5 VDC, SMD, 110 ohm, 100 mA

Quantity:

Add to RFQ list

In Stock : 999

Share

Please send RFQ, we will respond immediately.

* Contact Name

* Business Email

* Company Name

* Country

* Quantity

Product Details

Purchasing and Inquiry

See Relate Datesheet
1. Purchase

You can send an inquiry by email, or add the item to the RFQ list and submit it to us.
Tell us the model and quantity you need, our sales staff will reply the price in time.
EmailEmail for receiving inquiries: jindawei@hkjdwchip.com

2. Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

3. RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

4. Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.

Purchasing and Inquiry

Payment Method

 The fee is charged according to the rule of PayPal.
East West Bank charge US$30.00 banking fee.
The fee is charged according to the rule of PayPal.
Western Union charge US$0.00 banking fee.

Shipping

 DHL(www.dhl.com)
From $40.00 basic shipping fee depend on zone and country.
UPS(www.ups.com)
From $40.00 basic shipping fee depend on zone and country.
FedEx(www.fedex.com)
From $40.00 basic shipping fee depend on zone and country.
Registered Mail(www.singpost.com)
From $10.00 basic shipping fee depend on different zone and country.

Package

Product
Step1Product
Casing drivepipe
Step2Casing drivepipe
Anti-static bag
Step3Anti-static bag
Packaging boxes
Step4Packaging boxes
Bar-code shipping tag
Step5Bar-code shipping tag

9852-05-10

technical specifications, attributes, parameters and parts with similar specifications to 9852-05-10.

  • Type
    Parameter
    Select All

  • Factory Lead Time

    15 Weeks

  • Contact Material

    Ruthenium

  • Mount

    Surface Mount

  • Mounting Type

    Surface Mount

  • Package / Case

    SMD/SMT

  • Number of Pins

    8

  • Operating Temperature

    -20°C~85°C

  • Packaging

    Tube

  • Published

    2010

  • Series

    9800

  • JESD-609 Code

    e4

  • Feature

    Magnetic Shield

  • Pbfree Code

    yes

  • Part Status

    Obsolete

  • Moisture Sensitivity Level (MSL)

    2 (1 Year)

  • Number of Terminations

    8

  • ECCN Code

    EAR99

  • Terminal Finish

    Gold (Au)

  • Additional Feature

    SHIELDED

  • Packing Method

    TAPE AND REEL

  • Termination Style

    Axial

  • Lead Pitch

    1.02mm

  • Physical Dimension

    10.16mm x 4.95mm x 4.95mm

  • Contact Resistance

    150mOhm

  • Insulation Resistance

    1GOhm

  • Row Spacing

    12.06 mm

  • Contact Current(DC)-Max

    0.1A

  • Sealing

    HERMETICALLY SEALED

  • Contact Voltage(DC)-Max

    30V

  • Electrical Life

    100000000 Cycle(s)

  • Throw Configuration

    SPDT

  • Contact Form

    SPDT (1 Form C)

  • Rise Time

    260μs

  • Relay Type

    RF

  • Contact Current(AC)-Max

    0.1A

  • Coil Resistance

    110Ohm

  • Contact (AC) Max Rating R Load

    .1A@30VAC

  • Operate Time

    1ms

  • Coil Voltage

    5VDC

  • Coil Type

    Non Latching

  • Switching Voltage

    30VAC 30VDC -Max

  • Coil Current

    45.5mA

  • Release Time

    1 ms

  • Contact (DC) Max Rating R Load

    .1A@30VDC

  • Must Operate Voltage

    3.8VDC

  • Coil Power

    225mW

  • Must Release Voltage

    0.4VDC

  • Contact Voltage(AC)-Max

    30V

  • Contact/Output Supply Type

    AC/DC

  • Relay Action

    MOMENTARY

  • Coil Voltage (DC)

    5V

  • Coil/Input Supply Type

    DC

  • Dielectric Strength Between Open Contacts

    200 Vrms

  • Input Switching Control Type

    Random

  • Dielectric Strength Between Coil and Contacts

    1000 Vrms

  • Switching Current

    100mA

  • Height

    4.95mm

  • Length

    9.52mm

  • Width

    10.16mm

  • REACH SVHC

    Unknown

  • RoHS Status

    RoHS Compliant

  • Lead Free

    Lead Free

Hot Sales in Thermal

ARE10A12

ARE10A12

ARE10A12

ARS12A12Z

ARS12A12Z

ARS12A12Z

RF131-5

RF131-5

RF131-5

1462050-2

1462050-2

1462050-2

MW3HPS-5AE

MW3HPS-5AE

MW3HPS-5AE

ARE13A03C90

ARE13A03C90

ARE13A03C90

9852-05-10

9852-05-10

9852-05-10

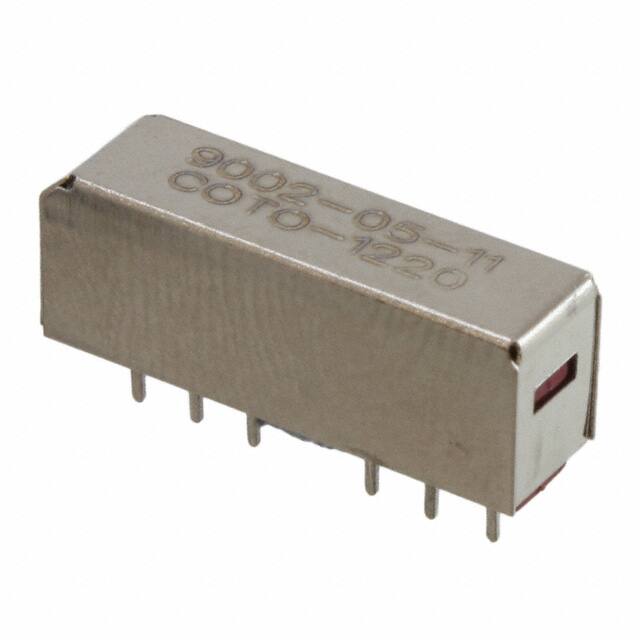

9002-05-11
