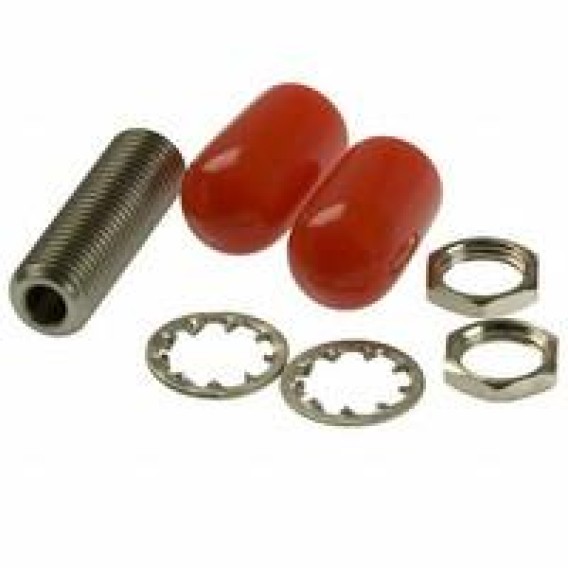

504028-1
504028-1
792-504028-1
SMA
504028-1 datasheet pdf and Fiber Optic Connectors - Adapters product details from TE Connectivity AMP Connectors stock available at HK JDW
In Stock : 999
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
504028-1 Description
Modern technology is used in TE's PARALIGHT active optical cable assemblies to create affordable high data throughput interconnects. The connector shell of the cables' E/O and O/E conversion allows for a significant increase in PCB real estate utilization.
The 5 Gb/s active cable assemblies will function over a data rate of 2.5 to 5 Gb/s per lane with an aggregate data rate of 20 Gb/s in each direction using 850 nm VCSEL technology.
The operating range of the 10 Gb/s active cable assemblies is 2.5 to 10 Gb/s per lane, with a maximum combined data rate of 40 Gb/s in each direction.
They are made of 50 micron fiber and come in lengths of up to 100 meters. On request, further lengths are available. The 8B/10B encoded data streams used by InfiniBand, Fibre Channel, and XAUI are compatible with the EOE circuits.
I 2C serial interface connections are supported by the QSFP connector style, which can be used to determine a product's performance capabilities.
504028-1 Features
Asynchronous, internally AC coupled inputs and outputs
Passively cooled design — low thermal resistance heat path from chip to connector shell
Small diameter cable (3.0 mm)
Light weight
Tight bend radius
Following configurations also available. Contact your TE sales representative for details
- SFP+ 10 Gb/s single lane
- CXP 10 Gb/s twelve lane
4 transmit and 4 receive channels at 5 Gb/s and 10 Gb/s per channel
Industry standard (SFF-8470) electrical connector (aka InfiniBand 4X, IB 4X, CX4*, Fibre Channel) and QSFP/ QSFP+ Connector
Internally terminated optics — no optical connector to clean
Differential data I/O per InfiniBand version 1.2.1
504028-1 Applications
Metro Network Switch/Cross Connect
High End Carrier Class Routers
SDR, QDR and DDR InfiniBand Applications
Other 2.5–10.0 Gb/s Applications (e.g. 10 Gb Fibre Channel or 10 Gig Ethernet XAUI on ports providing InfiniBand pinout 3.3 V power)
High Performance Computing Clusters
Supercomputers
High End Servers
Mass Storage
