2SA1015L-GR-T92-B(UTC)

Description:

2SA1015L-GR-T92-B(UTC) is a PNP type low frequency amplifier transistor produced by UTC (Youshun), with a rated power of 400mW, a collector current of 150mA and a collector-emitter breakdown voltage of 50V. It is widely used in electronic devices that require signal amplification.

Main Features:

PNP transistor type: As a PNP transistor, it is suitable for circuit environments that require hole conduction.

High power and current carrying capacity: The rated power reaches 400mW, and the collector current can reach up to 150mA, which is suitable for use in circuits that require a certain power output.

High voltage tolerance: The collector-emitter breakdown voltage (Vce) is 50V, indicating that the transistor can withstand a high reverse voltage between the collector and the emitter, which improves the safety and stability of the circuit.

Excellent current amplification performance: The current amplification factor (hFE) ranges from 200 to 400, ensuring good current amplification linearity and amplification capability.

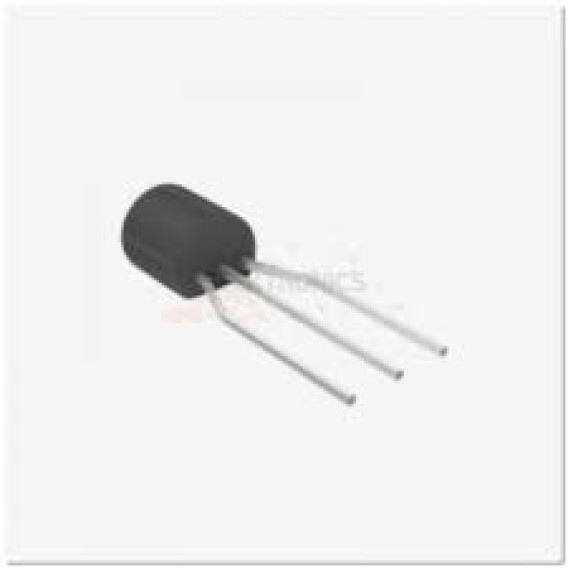

TO-92 package: The common TO-92 package is used for easy installation and layout in electronic equipment.

Wide range of applications: Due to its stable performance and good electrical parameters, this transistor is widely used in audio amplifiers, drive stage amplifiers, security equipment and other electronic equipment that require signal amplification.

Applications:

Due to its good current amplification performance and stability, 2SA1015L-GR-T92-B is often used in audio amplifiers to amplify audio signals to drive audio devices such as speakers.

Excitation amplifier:

In some electronic devices that require excitation signals, such as RF transmitters, lasers, etc., 2SA1015L-GR-T92-B can be used as an excitation amplifier to provide the necessary current and voltage gain.

Security equipment:

Signal amplification circuits are often required in security equipment to improve the transmission distance and stability of signals. 2SA1015L-GR-T92-B is widely used in security equipment due to its stable performance and easy-to-use characteristics.

Industrial control:

In industrial control systems, 2SA1015L-GR-T92-B can be used in signal processing and control circuits to achieve precise control of industrial equipment.

Communication equipment:

In some communication equipment, such as modems, signal amplifiers, etc., signal amplification circuits are also required. 2SA1015L-GR-T92-B is suitable for use in the signal amplification circuits of these devices due to its excellent electrical parameters and reliability.
