Slide Switches

Name	Manufacturer	Pricing(USD)	Quantity	Datasheet	Factory Lead Time	Mount	Packaging	Published	Series	Pbfree Code	Part Status	Moisture Sensitivity Level (MSL)	Termination	Number of Positions	Max Operating Temperature	Min Operating Temperature	Orientation	Length	RoHS Status	Lead Free	Contact Material	Contact Plating	Voltage - Rated	Current Rating	Radiation Hardening	Package / Case	Reach Compliance Code	Height	Width	Mounting Type	Operating Temperature	Voltage - Rated DC	Washable	Voltage - Rated AC	Max Voltage Rating (DC)	Power Rating	JESD-609 Code	Body Material	Termination Style	Contact Style	Feature	Pitch	Current Rating (Amps)	Throw Configuration	Switch Type	Electrical Life	Switch Function	Contact Current Rating	Contact Finish	Actuator Type	Circuit	Actuator Length	Actuator Material	Contact Timing	Operating Force	Switch Travel

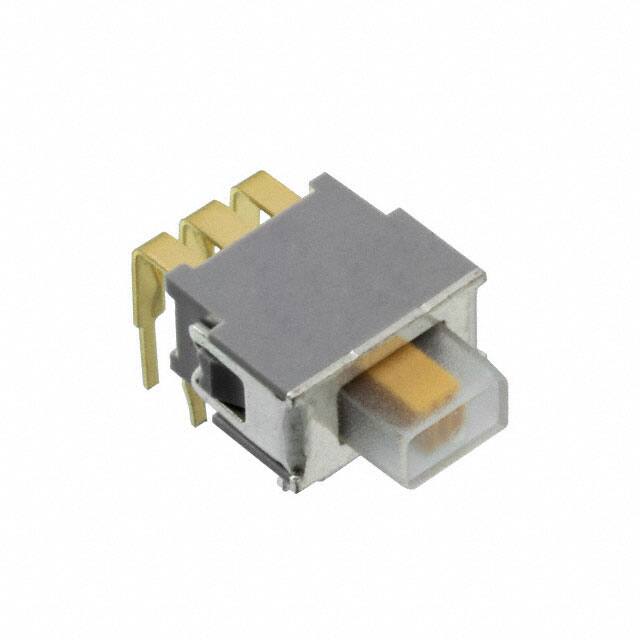

ASE2N-5M-10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Tray	2016	ASE		Active	1 (Unlimited)	PC Pin		85°C	-20°C			ROHS3 Compliant			Gold		50mA						Through Hole, Right Angle	-20°C~85°C	60V		60V					PC Pin	Non-Shorting	Washable		50mA AC/DC	DPDT		10,000 Cycles	On-On		Gold	Standard	DPDT	2.80mm		Non-Shorting (BBM)	70 ~ 500gf	2.20mm
CAS-220A1	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk		CAS		Active	1 (Unlimited)	J-Hook		85°C	-40°C			RoHS Compliant		Copper Alloy	Gold			No	SMD/SMT				Surface Mount	-40°C~85°C	6V			24V				J Lead				100mA DC	DPDT		2,000 Cycles	On-On		Gold	Flush	DPDT	Flush	Polyamide (PA), Nylon	Not Specified	51 ~ 510gf	0.60mm
ASE1D-6M-10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Tray	2016	ASE		Active	1 (Unlimited)	PC Pin		85°C	-20°C			ROHS3 Compliant			Gold		50mA						Through Hole, Right Angle	-20°C~85°C	60V		60V					PC Pin	Non-Shorting	Washable		50mA AC/DC	SPDT		10,000 Cycles	On-On		Gold	Standard	SPDT	2.80mm		Non-Shorting (BBM)	70 ~ 500gf	2.20mm
SS210P-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Panel	Bulk	2016	SS		Active	1 (Unlimited)	Solder						ROHS3 Compliant					10A						Panel Mount				125V					Solder Lug				10A AC	DPDT		10,000 Cycles	On-Off-On			Standard	DPDT	9.00mm		Not Specified		9.00mm
CAS-D20TA1	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CAS		Active	1 (Unlimited)	J-Hook	2	85°C	-40°C		5.3848mm	ROHS3 Compliant		Copper Alloy	Gold		100mA						Surface Mount	-40°C~85°C	6V	No		24V			Polyphenylene	J Lead			1.7272mm	100mA DC	DPDT, SPDT		2,000 Cycles	On-On		Gold	Flush	SPDT x 2	Flush	Polyamide (PA), Nylon	Not Specified	51 ~ 510gf	0.60mm
CL-SB-22B-01	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk	2016	CL-SB	yes	Active	1 (Unlimited)	Gull Wing						ROHS3 Compliant		Copper			200mA			unknown			Surface Mount	-40°C~85°C	12V					e4		Gull Wing	Non-Shorting			200mA DC		SLIDE SWITCH	10,000 Cycles	On-On	200mA	Silver	Standard	DPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf
CL-SB-23A-12T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)			85°C	-40°C			ROHS3 Compliant		Copper	Gold		200mA						Surface Mount, Right Angle	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC	DP3T		10,000 Cycles	On-On-On		Gold	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CJS-1201B	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	PCB, Surface Mount	Bulk	2011	CJS		Active	1 (Unlimited)	Gull Wing		85°C	-40°C			RoHS Compliant		Copper Alloy	Gold			No	SMD/SMT				Surface Mount	-40°C~85°C	6V			24V				Gull Wing		Tape Seal		100mA DC	SPDT		200 Cycles	On-Off-On	100mA	Gold	Flush	SPDT	Flush	Polyamide (PA), Nylon	Not Specified	600gf	0.60mm
CL-SB-23B-11T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)		CL-SB		Active	1 (Unlimited)	Gull Wing		85°C	-40°C			ROHS3 Compliant		Copper	Silver		200mA						Surface Mount, Right Angle	-40°C~85°C	12V							Gull Wing	Non-Shorting			200mA DC	DP3T		10,000 Cycles	On-On-On		Silver	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CL-SB-23A-11	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk	2016	CL-SB	yes	Active	1 (Unlimited)					Horizontal		ROHS3 Compliant		Copper			200mA			unknown			Surface Mount, Right Angle	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC		SLIDE SWITCH	10,000 Cycles	On-On-On	200mA	Silver	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf
CL-SB-22C-12	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Through Hole	Bulk		CL-SB		Active	1 (Unlimited)	PC Pin		85°C	-40°C			ROHS3 Compliant		Copper	Gold		200mA						Through Hole, Right Angle	-40°C~85°C	12V							PC Pin	Non-Shorting			200mA DC	DPDT		10,000 Cycles	On-On		Gold	Standard	DPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf	2.00mm
AS2D-5M-10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Tray	2016	AS		Active	1 (Unlimited)	PC Pin		85°C	-20°C	Right Angle		ROHS3 Compliant			Gold		50mA						Through Hole, Right Angle	-20°C~85°C	48V		48V					PC Pin	Non-Shorting			50mA AC/DC	DPDT		10,000 Cycles	On-On	50mA	Gold	Standard	DPDT	4.30mm		Non-Shorting (BBM)	70 ~ 500gf	2.20mm
ASE2P-2M-10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Tray	2016	ASE		Active	1 (Unlimited)	PC Pin		85°C	-20°C			ROHS3 Compliant			Gold		50mA						Through Hole	-20°C~85°C	60V		60V					PC Pin	Non-Shorting	Washable		50mA AC/DC	DPDT		10,000 Cycles	On-Off-On		Gold	Standard	DPDT	2.80mm		Non-Shorting (BBM)	70 ~ 500gf	2.20mm
CL-SB-13A-11	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk	2016	CL-SB		Active	1 (Unlimited)			85°C	-40°C			ROHS3 Compliant		Copper	Silver		200mA						Surface Mount, Right Angle	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC	SP3T		10,000 Cycles	On-On-On		Silver	Standard	SP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CL-SB-12A-02	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk	2016	CL-SB		Active	1 (Unlimited)			85°C	-40°C			ROHS3 Compliant		Copper	Gold		200mA						Surface Mount	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC	SPDT		10,000 Cycles	On-On	200mA	Gold	Standard	SPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf	2.00mm

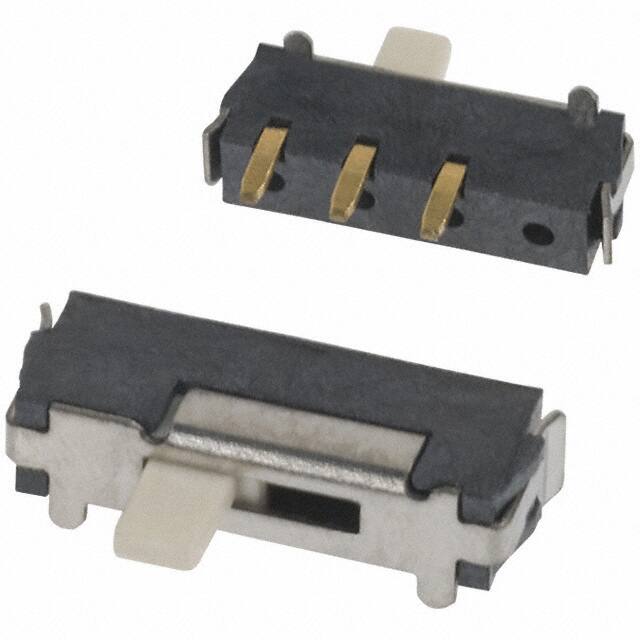

CSS-1211TB	Nidec Copal Electronics	0.7139	Add to Cart Min: 1 Mult: 1	download	10 Weeks	PCB, Surface Mount	Tape & Reel (TR)	2006	CSS	yes	Active	1 (Unlimited)	Gull Wing				Right Angle		ROHS3 Compliant		Copper Alloy			100mA	No	SMD/SMT				Surface Mount, Right Angle	-20°C~70°C	12V			12V				Gull Wing	Non-Shorting			100mA DC		SLIDE SWITCH	10,000 Cycles	On-Mom	100mA	Gold	Standard	SPDT	2.00mm	Liquid Crystal Polymer (LCP)	Non-Shorting (BBM)	102 ~ 357gf
CL-SB-13B-02T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)	Gull Wing		85°C	-40°C	Vertical		ROHS3 Compliant	Lead Free	Copper	Gold		200mA						Surface Mount	-40°C~85°C	12V							Gull Wing	Non-Shorting			200mA DC	SP3T		10,000 Cycles	On-On-On	200mA	Gold	Standard	SP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
ES125D10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download		Panel	Bulk	2016	ES		Obsolete	1 (Unlimited)	Screw						ROHS3 Compliant					25A						Panel Mount				125V					Screw Terminal	Non-Shorting			25A AC	SPDT		20,000 Cycles	On-On			Standard	SPDT	9.00mm		Non-Shorting (BBM)		8.00mm
MHS122	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Bulk	2016	MHS		Active	1 (Unlimited)	PC Pin		70°C	-10°C		9.6mm	ROHS3 Compliant			Silver	12V	200mA				3.5mm	5.8mm	Through Hole, Right Angle	-10°C~70°C	12V							PC Pin	Non-Shorting			200mA DC	SPDT		5,000 Cycles	On-On		Silver	Standard	SPDT	2.00mm		Non-Shorting (BBM)	50 ~ 250gf	2.00mm
CL-SB-23C-02	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Through Hole	Bulk		CL-SB		Active	1 (Unlimited)	PC Pin		85°C	-40°C			ROHS3 Compliant		Copper	Gold		200mA						Through Hole	-40°C~85°C	12V							PC Pin	Non-Shorting			200mA DC	DP3T		10,000 Cycles	On-On-On		Gold	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
S-1-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1		9 Weeks	Panel	Bulk		S		Active	1 (Unlimited)	Solder						ROHS3 Compliant					8A						Panel Mount				125V					Solder Lug	Non-Shorting			8A AC	DPDT		10,000 Cycles	On-On			Standard	DPDT	9.00mm		Non-Shorting (BBM)		5.00mm
CL-SB-12B-02	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Bulk	2016	CL-SB	yes	Active	1 (Unlimited)	Gull Wing						ROHS3 Compliant	Lead Free	Copper			200mA			unknown			Surface Mount	-40°C~85°C	12V							Gull Wing	Non-Shorting			200mA DC		SLIDE SWITCH	10,000 Cycles	On-On	200mA	Gold	Standard	SPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf
CL-SB-23A-02T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)			85°C	-40°C			ROHS3 Compliant	Lead Free	Copper	Gold		200mA						Surface Mount	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC	DP3T		10,000 Cycles	On-On-On		Gold	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CL-SB-12B-01T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)	Gull Wing		85°C	-40°C	Vertical		ROHS3 Compliant	Lead Free	Copper	Silver		200mA						Surface Mount	-40°C~85°C	12V							Gull Wing	Non-Shorting			200mA DC	SPDT		10,000 Cycles	On-On	200mA	Silver	Standard	SPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf	2.00mm
MFS201N-16-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Bulk	2016	MFS		Active	1 (Unlimited)	PC Pin		70°C	-10°C	Horizontal	16.7mm	ROHS3 Compliant	Lead Free			10V	1A				9mm	14.6mm	Through Hole, Right Angle	-10°C~70°C	30V		125V					PC Pin	Non-Shorting			1A AC/DC	DPDT		5,000 Cycles	On-On	1A		Standard	DPDT	7.10mm		Non-Shorting (BBM)	300gf	3.00mm
CL-SB-13C-02	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Through Hole	Bulk		CL-SB		Active	1 (Unlimited)	PC Pin		85°C	-40°C			ROHS3 Compliant		Copper	Gold		200mA						Through Hole	-40°C~85°C	12V							PC Pin	Non-Shorting			200mA DC	SP3T		10,000 Cycles	On-On-On		Gold	Standard	SP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CL-SB-12A-02T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)			85°C	-40°C	Vertical		ROHS3 Compliant	Lead Free	Copper	Gold		200mA						Surface Mount	-40°C~85°C	12V							J Lead	Non-Shorting			200mA DC	SPDT		10,000 Cycles	On-On	200mA	Gold	Standard	SPDT	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	153gf	2.00mm

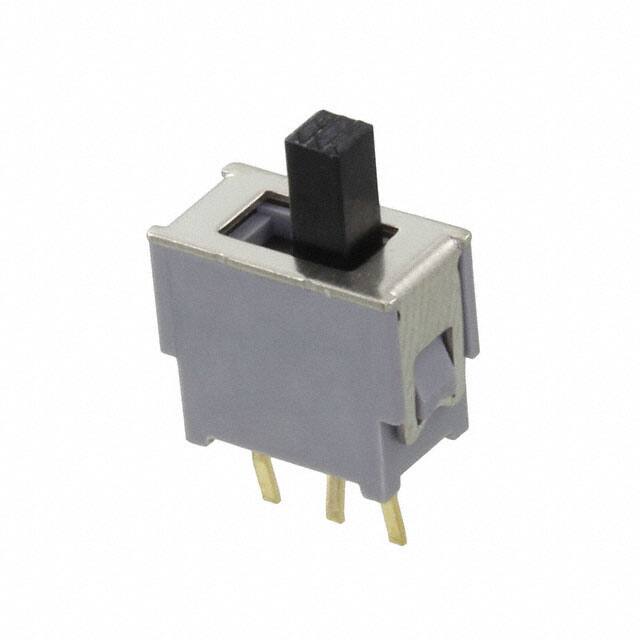

AS1D-2M-10-Z	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	9 Weeks	Through Hole	Tray		AS		Active	1 (Unlimited)	PC Pin		85°C	-20°C	Vertical	9.5mm	ROHS3 Compliant	Lead Free		Gold	48V	50mA				12.3mm	5mm	Through Hole	-20°C~85°C	48V		48V		400mW			PC Pin	Non-Shorting			50mA AC/DC	SPDT		10,000 Cycles	On-On	50mA	Gold	Standard	SPDT	4.30mm		Non-Shorting (BBM)	70 ~ 500gf	2.20mm
CL-SB-13C-01	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Through Hole	Bulk		CL-SB		Active	1 (Unlimited)	PC Pin		85°C	-40°C			ROHS3 Compliant	Lead Free	Copper	Silver		200mA						Through Hole	-40°C~85°C	12V							PC Pin	Non-Shorting			200mA DC	SP3T		10,000 Cycles	On-On-On		Silver	Standard	SP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
CL-SB-23B-02T	Nidec Copal Electronics	0.0000	RFQ Min: 1 Mult: 1	download	11 Weeks	Surface Mount	Tape & Reel (TR)	2012	CL-SB		Active	1 (Unlimited)	Gull Wing		85°C	-40°C			ROHS3 Compliant	Lead Free	Copper	Gold		200mA						Surface Mount	-40°C~85°C	12V							Gull Wing	Non-Shorting			200mA DC	DP3T		10,000 Cycles	On-On-On		Gold	Standard	DP3T	2.00mm	Polyamide (PA), Nylon	Non-Shorting (BBM)	160/260gf	2.00mm
