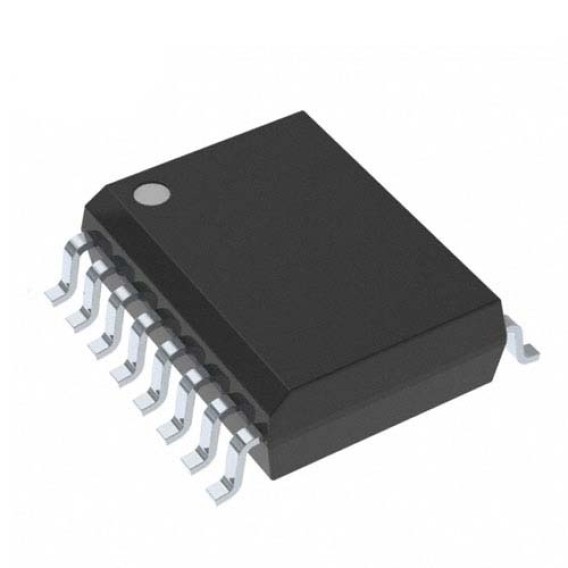

ADUM1311ARWZ-RL
ADUM1311ARWZ-RL
84-ADUM1311ARWZ-RL
16-SOIC (0.295, 7.50mm Width)
Digital Isolator CMOS 3-CH 1Mbps 16-Pin SOIC W T/R
In Stock : 422
Share
Please send RFQ, we will respond immediately.
Product Details
Purchasing and Inquiry
Product Description:
The ADUM1311ARWZ-RL is a dual-channel, high-speed digital isolator designed to provide galvanic isolation between two separate circuits. This digital isolator offers exceptional performance, high data rate capabilities, and robust isolation, making it suitable for applications that require reliable and safe communication between isolated systems.
Features:
1.Galvanic Isolation: The ADUM1311ARWZ-RL provides galvanic isolation, ensuring that there is no direct electrical connection between the input and output sides of the device. This isolation helps protect sensitive components and circuits from voltage spikes, ground loops, and noise.
2.High Data Rate: This digital isolator is designed for high-speed communication, supporting data rates up to several megabits per second (Mbps). It enables efficient and reliable data transfer between isolated systems.
3.Robust Isolation Barrier: The ADUM1311ARWZ-RL features a robust isolation barrier that meets safety standards and regulations, providing a secure and reliable isolation solution.
4.Wide Operating Temperature Range: This digital isolator supports a wide operating temperature range, maintaining its accuracy and stability across different environmental conditions.
5.High Noise Immunity: The ADUM1311ARWZ-RL is designed to have high noise immunity, ensuring reliable data communication even in noisy environments.
Applications:
The ADUM1311ARWZ-RL digital isolator finds applications in a wide range of electronic systems, including:
1.Industrial Automation: It is commonly used in industrial automation systems to provide isolation between control circuits and power circuits, enhancing safety and preventing damage from electrical faults.
2.Motor Control Systems: This digital isolator can be used in motor control applications to provide isolation between the control circuitry and the high-voltage motor drive circuitry.
3.Data Communication Interfaces: The ADUM1311ARWZ-RL is employed in communication interfaces, such as USB, RS-485, SPI, and I2C, to provide safe and reliable isolation between devices.
4.Power Supply Feedback Loops: This digital isolator can be used in power supply feedback loops to provide isolation and protect sensitive control circuitry from high-voltage transients.
In summary, the ADUM1311ARWZ-RL digital isolator offers galvanic isolation, high data rate capabilities, and robust isolation for enhanced system safety and performance. Whether you're working on industrial automation, motor control, data communication interfaces, or power supply feedback loops, this digital isolator provides reliable and secure isolation between isolated systems, ensuring smooth and safe operation of electronic devices and circuits.
