What is FPGA?
An FPGA (Field Programmable Gate Array) is a reconfigurable chip that you can program to perform specific tasks, customizing the digital logic to the unique requirements of a given application.
FPGA is a product of further development on the basis of programmable devices such as PAL (programmable array logic) and GAL (general array logic). It emerged as a semi-custom circuit in the field of application-specific integrated circuits (ASIC), which not only solves the shortcomings of custom circuits, but also overcomes the shortcomings of the limited number of original programmable device gates.
FPGA was invented by Ross Freeman, one of the founders of Xilinx, in 1985 and is a type of Programmable Logic Device (PLD). This time is about 20 years later than the famous Moore's Law, but once the FPGA was invented, the subsequent development was faster than most people's imagination.
What is Field programmable?
Field programmable refers to technologies or devices that can be reconfigured or customized by users or developers after manufacture.
This ability to reprogram the hardware "in the field" of device deployment gives FPGAs remarkable adaptability. Unlike application-specific integrated circuits (ASICs), which are carved in stone once manufactured, FPGAs are like electronic chameleons—ready to change color and form to meet new challenges.
FPGA architecture
Imagine a complex puzzle where each piece represents a unique function, and you have the power to arrange them however you like. This is the nature of the FPGA architecture.

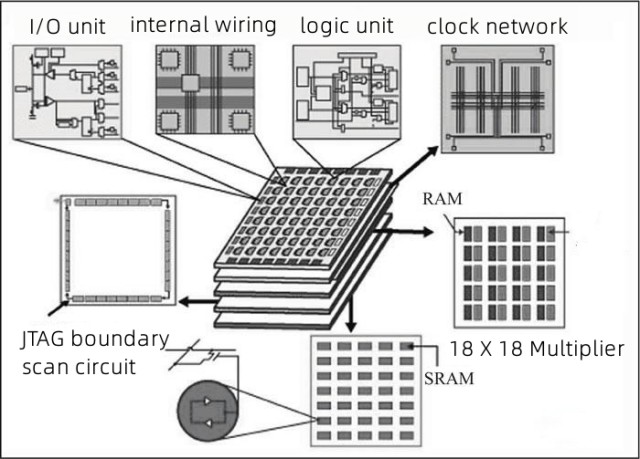

FPGA is mainly completed by six parts, namely: programmable input and output unit, basic programmable logic unit, complete clock management, embedded block RAM, rich wiring resources, embedded underlying functional units and embedded dedicated hardware modules.
How FPGAs work?
FPGAs work by providing a reconfigurable hardware platform that allows users to define and implement custom digital circuits.
As we delve deeper into the mechanics of FPGAs, we discover a process that connects imagination and reality. Using hardware description languages, engineers can produce digital designs that resemble blueprints. Through synthesis, these designs are turned into configurations that guide the behavior of the FPGA. These configurations are loaded into the FPGA to breathe life into the digital circuits inside. The result is a dynamic, reconfigurable entity, tailored to meet specific needs.
The specific working principle is as follows:
Configuration: After the FPGA is powered on, it is in an unconfigured state. The required functionality of the FPGA is defined through a process called configuration. Configuration data, typically generated using a hardware description language (HDL) such as Verilog or VHDL, describes the interconnection between logic elements, how those elements behave, and how they should interact.
Compilation and Synthesis: HDL code is processed by specialized software tools. These tools perform synthesis, which involves converting an HDL description into a netlist representation of circuit logic and interconnections. These tools also map this netlist to FPGA resources, determining how logic cells, interconnects, memory blocks, and other components are utilized.
Place and route: Synthesis tools then perform placement, deciding where to physically place each logic element and resource on the FPGA chip. After placement, the routing phase comes into play to determine how to connect the components of these placements using the FPGA's programmable interconnect resources. This step aims to optimize factors such as signal propagation delay and resource utilization.
Configuration Loading: After place and route is complete, the resulting configuration data is loaded into the FPGA. This is typically done by transferring data from external memory, such as EEPROM or flash memory, to the FPGA's configuration memory locations. Configuration data effectively defines the behavior of FPGA logic cells, interconnects, and other resources specified in HDL code.
Operation: After the configuration is loaded, the FPGA is now operational and runs according to the design specified in the HDL. Logic cells perform the required combinational and sequential logic functions, and interconnects route signals between these cells. FPGAs can process data, perform calculations, and execute custom algorithms in real time.
Reconfigurability: One of the main advantages of FPGAs is their reconfigurability. If the required functionality changes, the user can modify the HDL code, go through the compilation process again, and reconfigure the FPGA. This flexibility makes FPGAs ideal for rapid prototyping, iterative development, and tasks with frequently changing requirements.
Parallelism and performance: FPGAs excel at parallel processing due to their inherently parallel architecture. Multiple logic units can perform operations simultaneously, and data can flow through the FPGA's interconnect in parallel. This parallelism enables FPGAs to achieve high-performance levels in a variety of applications, such as digital signal processing and hardware acceleration.
Advantages and disadvantages
FPGAs offer flexibility, customization, and high performance for specialized tasks, but they require specific skills, can be more costly, and have limitations compared to traditional processors or dedicated application-specific solutions. The choice to use an FPGA depends on the nature of the application and the trade-offs that best suit the project requirements.
The following are the advantages and disadvantages details of FPGA
Advantage:
Flexibility: FPGAs offer tremendous flexibility. They can be reprogrammed to achieve a wide range of functions, allowing them to be adapted to various applications without changing the physical hardware.
Customization: Designers can create custom digital circuits based on their specific needs, increasing performance and efficiency for specialized tasks.
Rapid prototyping: FPGAs are ideal for rapid prototyping. They enable designers to quickly test and iterate on their designs, significantly reducing development cycles.
Parallel processing: FPGAs inherently support parallel processing, enabling them to handle multiple tasks simultaneously and accelerate computations in areas such as signal processing and cryptography.
Real-time performance: FPGAs can achieve high performance and low latency, making them suitable for applications where real-time processing is critical, such as robotics and real-time data analysis.
Energy Efficiency: In some cases, FPGAs are more energy efficient than traditional CPUs or GPUs because they use only the resources needed for a particular task.
Hardware Acceleration: FPGAs excel at hardware acceleration, which offloads computationally intensive tasks from the CPU, significantly speeding up specific applications such as AI inferencing and encryption.
Disadvantage:
Complex programming: FPGA design requires expertise in hardware description languages (HDL) such as VHDL or Verilog. This can complicate the development process, especially for software-oriented developers.
Learning curve: Effective use of FPGAs requires a learning curve, both in programming languages and understanding FPGA architecture and toolchains.
Resource constraints: FPGAs have limited resources, which can limit design complexity. Larger, more powerful FPGAs tend to be more expensive.
More expensive: While FPGAs can offer performance benefits, they are typically more expensive than general-purpose processors or microcontrollers due to their specialized nature.
Limited floating-point performance: In tasks that rely heavily on floating-point calculations, such as some scientific simulations, FPGAs may not perform as well as GPUs or dedicated ASICs.
Time-consuming compilation: Compiling and configuring FPGA designs can be time-consuming, especially for large and complex designs.
Important Debugging: Debugging an FPGA design can be more challenging than debugging software because problems can be related to both hardware and software aspects.
FPGA design languages and platforms
FPGA design languages, including VHDL and Verilog, provide the means to describe digital circuits, while FPGA design platforms and tools provide the infrastructure to compile, synthesize, and configure these designs on the FPGA. The choice of language and platform depends on the familiarity of the designer, the complexity of the project, and the target FPGA hardware.
FPGA Design Language:
FPGA design languages are used to describe the behavior and structure of digital circuits to be implemented on FPGAs. Two well-known languages are:
VHDL (VHSIC Hardware Description Language): VHDL is a general-purpose and comprehensive language for describing hardware systems. It allows designers to specify the behavior and structure of circuits, making them suitable for complex designs. VHDL code describes entities, structures, and processes, enabling precise control over digital logic.
Verilog: Verilog is another widely used hardware description language. It provides VHDL-like functionality, allowing designers to model behavior and structure. Verilog has program modeling capabilities that make it similar to software programming, which is more intuitive to some developers.
FPGA design platform:
FPGA design involves not only writing code, but also compiling, synthesizing, and configuring the FPGA. Various platforms and tools facilitate this process:
Vendor-specific toolchains: FPGA manufacturers such as Xilinx, Intel (formerly Altera), and Lattice provide software toolchains. These include design entry, synthesis, place and route, simulation, and configuration tools tailored to the FPGA family. Examples include Xilinx Vivado and Intel Quartus Prime.
High-level synthesis (HLS) tools: HLS tools enable developers to write algorithms in high-level programming languages such as C/C++/SystemC. The tool automatically converts this code into an optimized hardware description for the FPGA, reducing the need for low-level hardware descriptions.
Open source tools: Projects such as "Yosys" and "Project IceStorm" provide open source synthesis and place and route tools for certain FPGA families. They provide an alternative to vendor-specific tools, especially for smaller FPGAs.
Integrated Development Environment (IDE): Some platforms, such as Xilinx's Vivado, provide integrated environments where designers can create, simulate, synthesize, and configure their FPGA designs in a single interface.
Online platforms: Some FPGAs offer cloud-based tools that allow you to remotely design, simulate, and even configure FPGAs using a web browser.
Development Boards: FPGA development boards provide a hardware platform for testing and implementing FPGA designs. They include FPGA chips, external memory, I/O interfaces, and other components used to build and test your designs in real-world scenarios.
FPGA IP Cores: FPGA vendors provide pre-designed intellectual property (IP) cores that can be integrated into your design, saving time and effort on commonly used functions such as communication protocols, memory controllers, and digital signal processing blocks.
Applications of FPGAs
Across industries, FPGAs are catalysts for innovation. Their adaptability, parallel processing power, and customizability have applications in aerospace, automotive, healthcare, telecommunications, and many other fields. They enable industries to break free from traditional constraints and design solutions that redefine what's possible. Here are some key areas where FPGAs are commonly used:
Digital Signal Processing (DSP): FPGAs excel at performing real-time signal processing tasks such as audio and video processing, image recognition, filtering, and compression. Their parallel architecture allows efficient execution of DSP algorithms.
Telecommunications: FPGAs are used in network equipment such as routers, switches, and base stations for functions such as protocol processing, encryption/decryption, error correction, and packet processing.
Embedded Systems: FPGAs can be integrated into embedded systems to offload specific tasks from microcontrollers or processors. This includes motor control, sensor interfacing, and custom peripheral management.
Aerospace and Defense: FPGAs are critical in aerospace applications, providing fast response times for avionics, radar systems, communication systems, and satellite control.
High-performance computing (HPC): FPGAs can accelerate specific computations in scientific simulations and data analysis, especially tasks that can be parallelized, such as gene sequencing and cryptography.
Machine Learning and AI Acceleration: Due to their parallel processing capabilities, FPGAs are increasingly used to accelerate machine learning algorithms and AI inference tasks. They provide energy-efficient options for real-time artificial intelligence applications.
Industrial automation: FPGAs enhance industrial control systems by enabling precise control and monitoring of manufacturing processes, robotics, and sensor integration.
Medical Imaging: FPGAs are used in medical imaging equipment such as MRIs, CT scanners, and ultrasound machines for real-time data processing, image reconstruction, and data compression.
Test and Measurement: FPGAs provide customizable hardware for test and measurement equipment, enabling rapid prototyping of measurement solutions and real-time signal analysis.
Automotive: FPGAs are used in automotive applications for advanced driver assistance systems (ADAS), infotainment systems, and engine control units, providing real-time processing and adaptability.
Financial Services: FPGAs are used in financial trading systems to perform high-frequency trading, risk analysis, and complex calculations with low latency.
Consumer Electronics: FPGAs are widely used in high-end TVs, game consoles, and audio equipment for signal processing, video enhancement, and special effects.
Energy management: FPGAs can optimize power management systems by monitoring, controlling, and adjusting energy distribution and consumption in real time.
Research and Prototyping: FPGAs are an excellent platform for testing hardware designs and prototyping before creating a dedicated ASIC (Application Specific Integrated Circuit).
Security and encryption: FPGAs can accelerate encryption algorithms to ensure the security of data transmission and storage.
FPGA manufacturers
Here are some notable FPGA manufacturers:
Xilinx (now part of AMD): Xilinx was one of the pioneers in the FPGA industry. They offer a broad portfolio of FPGA, SoC (system on chip) and programmable logic solutions. Known for their high-performance capabilities, Xilinx's FPGAs are used in a wide variety of industries.
Intel (formerly Altera): Intel acquired Altera, another leading FPGA manufacturer, and their FPGAs are now part of Intel's product line. Intel FPGAs are used in data centers, networking, automotive, and many other applications.
Lattice Semiconductor: Lattice Semiconductor specializes in low-power FPGAs, programmable logic devices (PLDs) and FPGA-related solutions. They target applications where power efficiency and small size are critical.
Microchip (formerly Actel): Microchip's FPGA brand "PolarFire" is designed for applications requiring high reliability and low power consumption. They specialize in aerospace, defense, industrial and automotive markets.
QuickLogic: QuickLogic produces ultra-low-power FPGAs designed for mobile and wearable devices, providing efficient processing power for edge computing applications.
Achronix Semiconductor: Achronix specializes in high-performance FPGA solutions for applications such as networking, data center, and artificial intelligence. They also offer eFPGAs (embedded FPGAs) for integration into ASICs and SoCs.
These manufacturers offer a range of FPGA families that address diverse needs ranging from high-performance computing and data acceleration to power-sensitive and embedded applications. Each company provides development tools, software and support to assist engineers in designing and deploying FPGA-based solutions.
You can filter and access related products from these manufacturers by visiting our FPGA product category page and filtering through the filters.
In conclusion:
In our journey through the world of FPGAs, we peel back the layers to reveal the realm of digital fitness. FPGAs—a testament to the fusion of engineering and imagination—are like a canvas on which to paint innovation with vivid brushstrokes. From humble beginnings to prominence today, FPGAs have illuminated the technology's boundless promise. As industries and individuals continue to harness their power, we have entered an era where electronics are no longer constrained, but free to morph and evolve according to the needs of the world they serve.
