Unveiling the MM74C74M: A Versatile Dual D-Type Positive-Edge-Triggered Flip-Flop
Introduction:
In the world of digital electronics, flip-flops play a vital role in storing and manipulating binary information. One such noteworthy device is the MM74C74M, a dual D-type positive-edge-triggered flip-flop. Developed by a well-established semiconductor manufacturer, this integrated circuit has gained popularity for its versatility and reliability. In this blog, we will take a closer look at the MM74C74M, exploring its features, applications, and significance in modern electronic systems.
Understanding the MM74C74M:

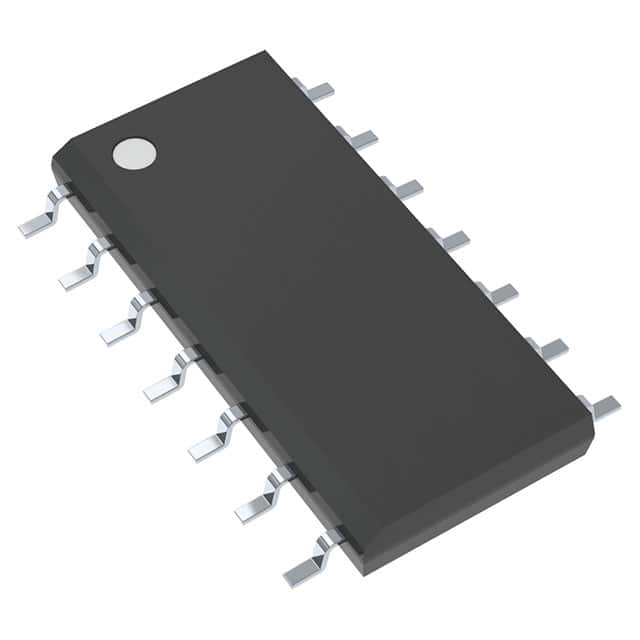

The MM74C74M is a member of the MM74C series, which comprises various flip-flop configurations designed to meet the requirements of different digital systems. The MM74C74M specifically consists of two independent D-type flip-flops, each capable of storing a single bit of information. Its positive-edge-triggered design ensures that data input is captured and transferred to the output during the rising edge of the clock signal.
The MM74C74M is an integrated circuit (IC) that belongs to the MM74C series of flip-flops. Specifically, it is a dual D-type positive-edge-triggered flip-flop. This means that it contains two independent D-type flip-flops within a single package, allowing for efficient use of space and resources.
The primary function of the MM74C74M is to store binary information. It does this by utilizing two inputs: the data input (D) and the clock input (CLK). The D input represents the data to be stored, while the CLK input controls when the data is captured and transferred to the outputs. The flip-flop captures the input data and stores it on the rising edge of the clock signal. The outputs, referred to as Q and Q̅, represent the true and complemented states of the stored data, respectively.
One notable feature of the MM74C74M is its positive-edge-triggered operation. This means that the flip-flop captures and transfers data when the clock signal transitions from a low level to a high level (rising edge). This synchronization mechanism ensures that data is reliably captured and stored at a specific instance, preventing errors that may arise from signal fluctuations during the clock transition.
The MM74C74M operates within a wide voltage range, typically between 3V and 15V, making it compatible with various power supply configurations. This flexibility allows for integration into diverse electronic systems without requiring significant adjustments to the power source.
Additionally, the MM74C74M incorporates direct overriding clear inputs. By applying a logic low signal to the clear input, the flip-flop can be reset to a known state, ensuring controlled initialization or clearing of the stored data.
The MM74C74M is widely used in digital systems for various applications. It is commonly employed in storage and data registers, where temporary storage and synchronization of data are required. The dual flip-flop configuration enables the implementation of data registers, shift registers, and counters.
Furthermore, the MM74C74M is utilized in digital clock synchronization systems. Its positive-edge-triggered behavior makes it well-suited for synchronizing data with clock signals, ensuring accurate timing in digital circuits.
The flip-flop's characteristics also make it suitable for implementing state machines, which are sequential logic circuits used in many applications. By utilizing the MM74C74M, designers can realize state machines with fewer components, improving efficiency and reducing complexity.
Lastly, the MM74C74M can generate control signals to synchronize different components within a digital system. These control signals play a crucial role in ensuring proper operation and timing.
Key Features:
Dual D-Type Flip-Flops: The MM74C74M integrates two flip-flops into a single package, allowing for efficient use of space and resources.
Positive-Edge Triggering: The device's positive-edge-triggered operation guarantees reliable data transfer at specific instances, synchronized with the clock signal.
Wide Operating Voltage Range: The MM74C74M operates within a broad voltage range, typically between 3V and 15V, making it compatible with various power supply configurations.
Direct Overriding Clear Inputs: This feature enables the user to reset the flip-flop to a known state by simply applying a logic low signal to the clear input.
Versatile Outputs: The outputs of the MM74C74M can be configured to represent different logical states, such as the Q output representing the true state and the Q̅ output representing the complemented state.
Applications:
Storage and Data Registers: The MM74C74M finds extensive use in applications requiring temporary storage or synchronization of data. Its dual flip-flop configuration allows for the implementation of data registers, shift registers, and counters.
Digital Clock Synchronization: The positive-edge-triggered nature of the MM74C74M makes it well-suited for synchronizing data with clock signals. It is often employed in clock distribution systems to ensure precise timing in digital circuits.
State Machine Implementation: Sequential logic circuits, such as finite state machines, frequently employ D-type flip-flops. The MM74C74M's dual flip-flop design enables the realization of state machines with fewer components.
Control Signal Generation: The MM74C74M can be used to generate control signals that synchronize various components in a digital system, ensuring proper operation and timing.
Significance in Modern Electronic Systems:
As digital systems continue to advance, the need for reliable and efficient flip-flops remains crucial. The MM74C74M offers several advantages that make it an attractive choice for various applications.
Firstly, the dual flip-flop configuration provides cost and space savings, making it suitable for compact designs. Its compatibility with a wide range of operating voltages allows for flexibility in system integration.
Moreover, the positive-edge-triggered behavior ensures precise data capture and synchronization, reducing the risk of data corruption or timing errors. This reliability is essential in high-speed applications where accurate data transmission is critical.
Conclusion:
the MM74C74M is a versatile dual D-type positive-edge-triggered flip-flop that offers reliable data storage and manipulation capabilities. Its positive-edge-triggered operation, wide voltage range, and dual flip-flop configuration make it an essential component in various digital applications, including data registers, clock synchronization, state machine implementation, and control signal generation.
